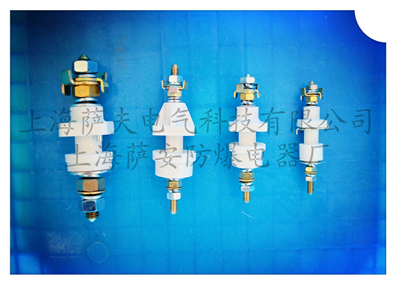

防爆接线端子 660V

product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
JF5-66000050001Φ10660V77
JF6-66000060001Φ12660V86
JF6-660 （无止转销）00060002Φ12660V86
JF6-660(G4)00060003Φ12660V99
JF10-66000100001Φ18660V110

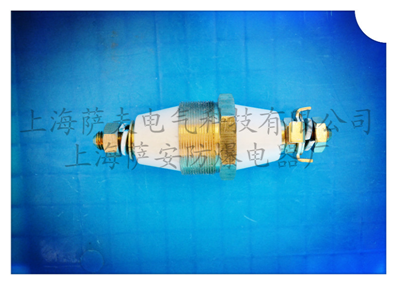

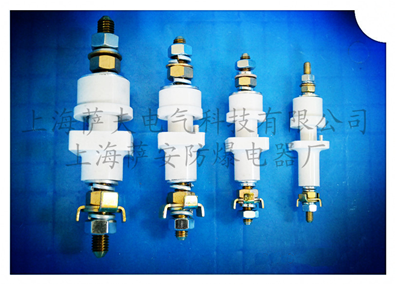

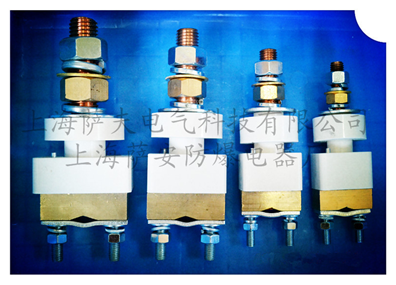

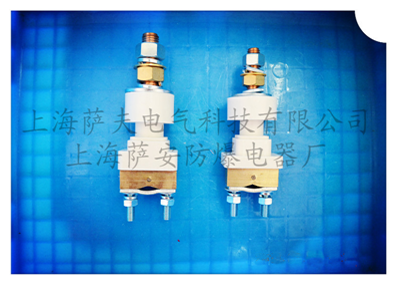

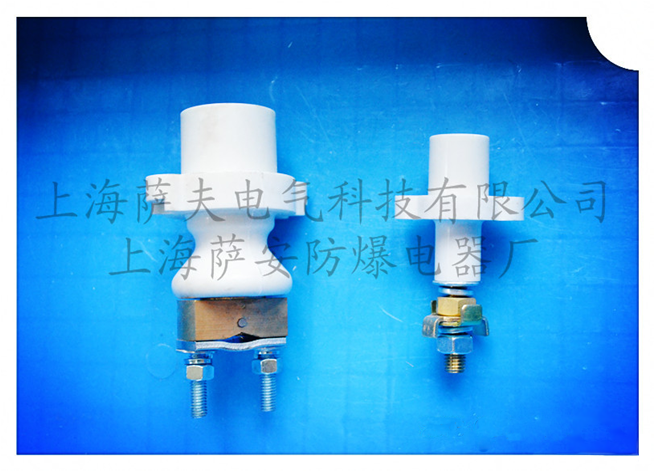

防爆接线端子 1140V

product product product product product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
CLM12-114004120102Φ451140V154
M6-114000060101Φ121140V112
M6-114000060102Φ121140V104
M8-114000080101Φ161140V118
M10-114000100101Φ181140V138
M10-114000100102Φ181140V无止转销
M10-114000100103Φ181140V158 双扣片
M12-1140(单柱)00120103Φ201140V161
M12-114000120101Φ221140V
M16-114000160101Φ261140V
M20-114000200101Φ301140V
M24-114000240101Φ341140V
M12-1140（J）00120102Φ221140V
M16-1140（J）00160102Φ261140V
TKM12-114001120101M45×1.51140V148

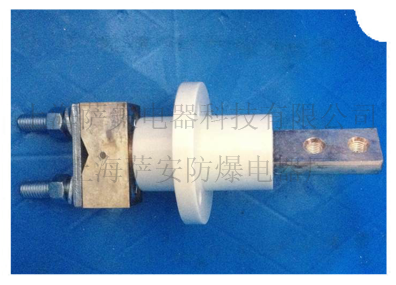

DGM30-114003300101Φ481140V镀银

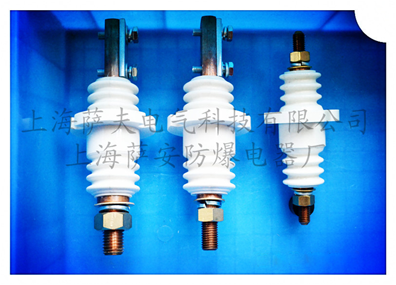

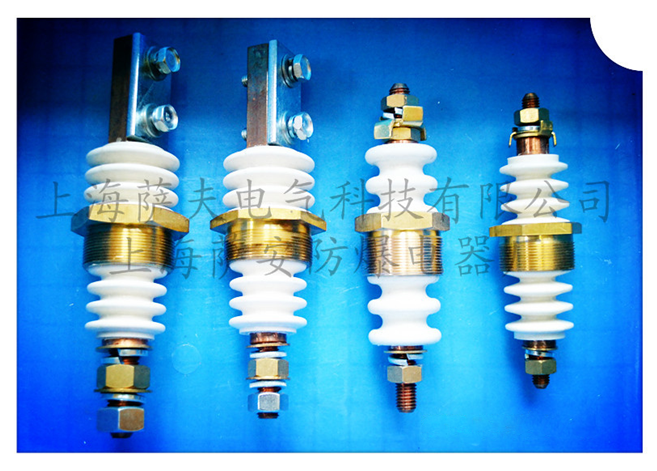

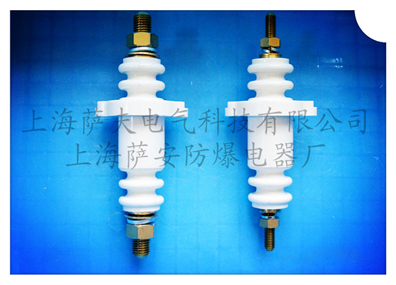

防爆接线端子 3300V

product product product product product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
CLM12-330000120201Φ453300V183
CLM16-330000160201Φ503300V216
CLM20-330000200201Φ503300V226
SYM10-330000100204Φ403300V204
SYM16-330000160204Φ403300V204
XJM16-330000160203Φ453300V183
XJM16-330000160203-TΦ453300V183
XJM16-330000160203-HTΦ453300V203
M12-330001120205M45×1.53300V166
M12-330001120205-TM45×1.53300V166
M16-330001160205M45×1.53300V177
M24-330000240301M52×1.53300V178

防爆接线端子 6KV及以上

product product product product product product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
SJL16-6KV04160301Φ806KV173
SJL16-10KV04160401Φ8010KV233
JD3-M10-6KV02100301Φ1006KV278
M10-6KV00100301Φ606KV278
M16-6KV00160301Φ606KV292
M16-10KV00160401Φ7510KV292

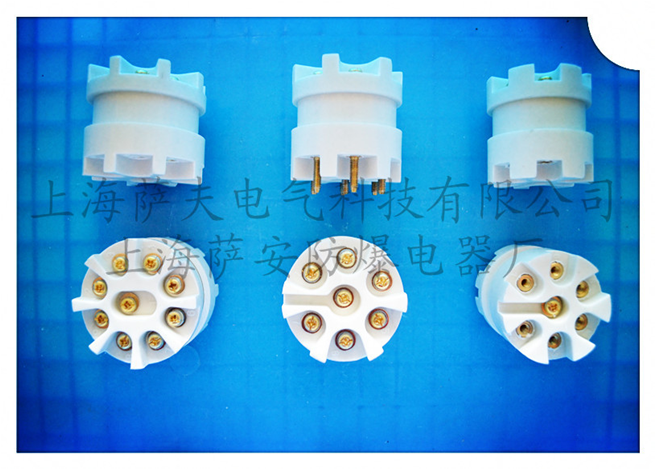

防爆接线端子 多芯

product product product product product product product product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
JD3-M12-114002120101Φ801140V163
JD4-M12-114002120102Φ801140V167
JD3-M16-330002160201Φ1003300V141
JD3-M10-114002100101Φ601140V140
JD7-22002070002Φ42220V47.5
JD7-220S02040001Φ46220V55.5
JD9-22002070006Φ48220V47.5
JD3-66002070001Φ48660V57.5
JD4-38002050001Φ36380V76
JD7-66002070004Φ60660V90

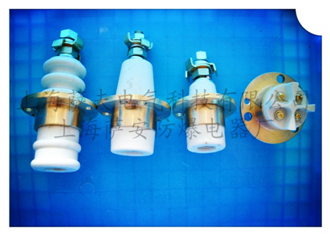

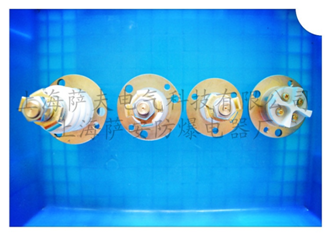

防爆接线端子 电机

product product product product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
SJDW4-66004070001Φ45660V66
SJL12-114004120101Φ401140V105
SJL10-330004100201Φ453300V127
SJL12-330004120201Φ453300V145
SJL10-3300-204100202Φ353300V95
SJL12-3300-204120203Φ353300V95
JL10-330004100203M30×23300V116
JL6-66004060001M20×2660V61
JL6-114004060101M20×21140V85
JL8-66004080001M24×2660V63
JL8-114004080101M24×21140V85
JL16-330004160201M48×23300V105

防爆接线端子 其他

product product product product product product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
M10-114003080103Φ571140V
M8-114003080102Φ441140V
JP603060001Φ105 45
M10-38003100001 380V58
JF6-22003060002Φ20220V70
JD2103100002Φ110220V48
大电流40×1400140201Φ803300V260
大电流50×2000200202Φ803300V260

防爆接线端子 过线组

product product product
产品规格产品编码防爆尺寸电压等级备注/长度(mm)
12芯过线组20011201M33×1.5 电线规格、芯数和长度可以按需定制
14芯过线组20011401M42×1.5 电线规格、芯数和长度可以按需定制
21芯过线组20012101M42×1.5 电线规格、芯数和长度可以按需定制
32芯过线组20003201Φ48 电线规格、芯数和长度可以按需定制
21D-A20002101Φ42 电线规格、芯数和长度可以按需定制

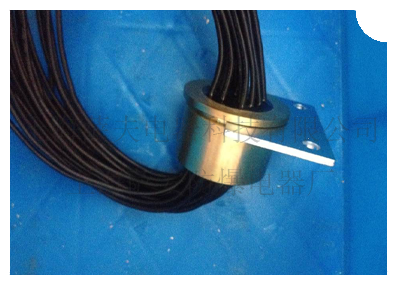

21芯过线组 （光面铜套）20022101Φ42 电线规格、芯数和长度可以按需定制
32芯过线组 （光面铜套）20023201Φ48 电线规格、芯数和长度可以按需定制
